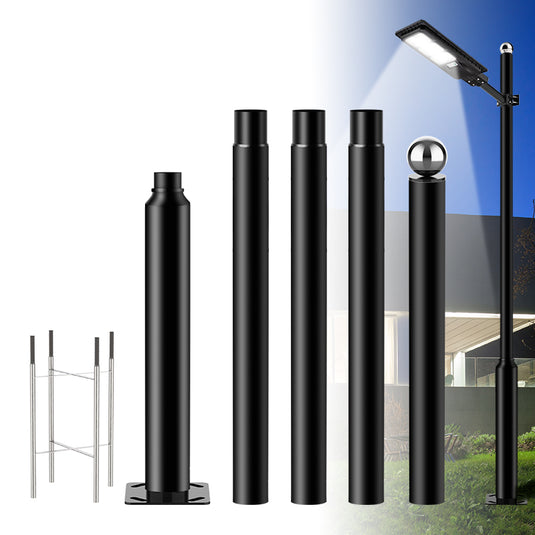

WIDE-USE

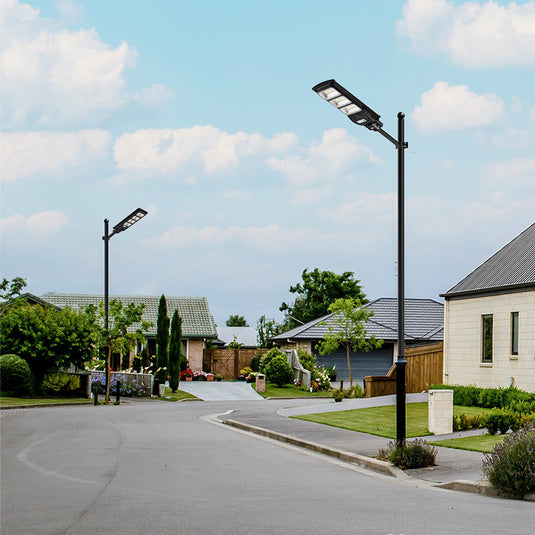

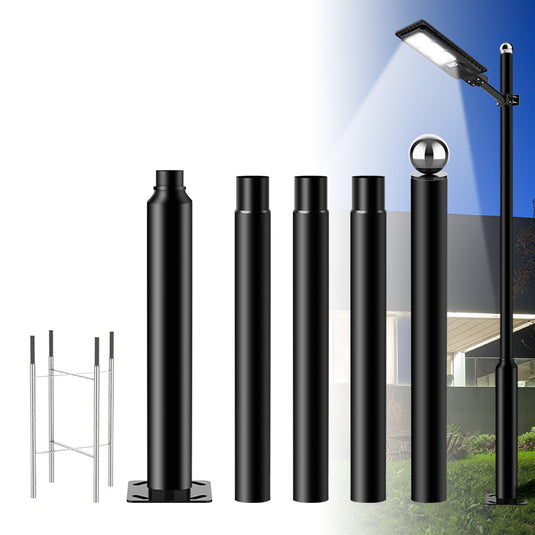

The lamp post fits garden lights, street lights, cameras, and more; primarily for solar street lights. Suitable for courtyards, basketball courts, walkways, and streets. A great light post to hold outdoor fixtures.
Specification

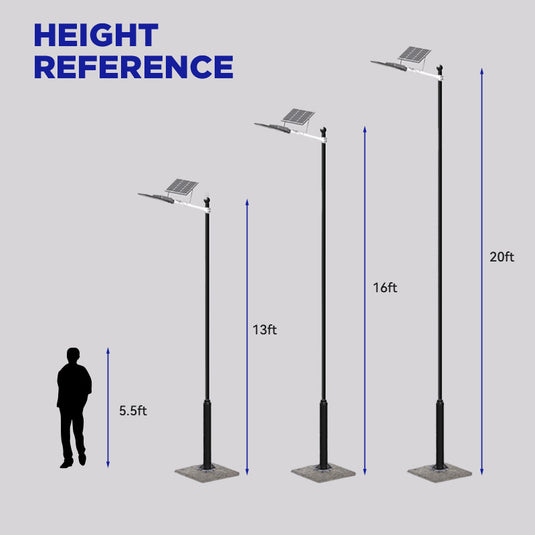

Height | 13.3FT | 16.4FT | 20FT |
Weight | 39.6LB | 44LB | 56LB |
Box size | 46.5 "x 9"x 10.5" | 54.5" x 9.4 "x 10" | 55 "x 10" x 11" |

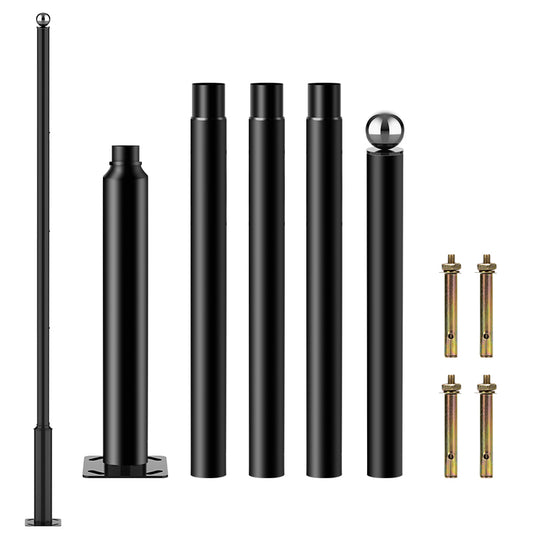

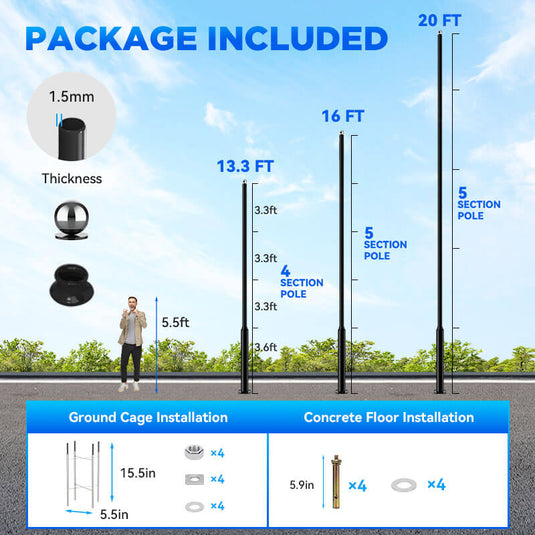

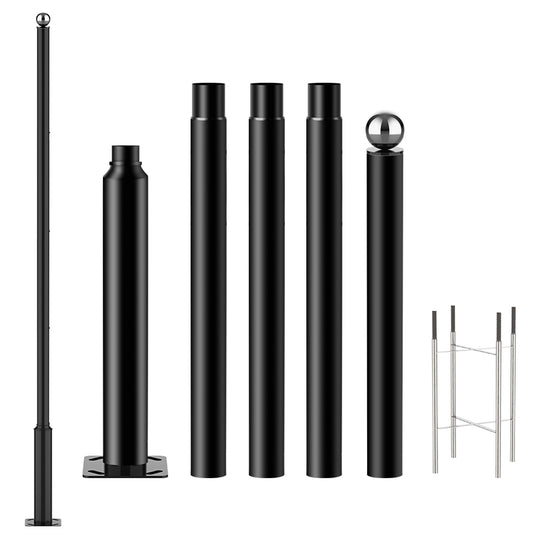

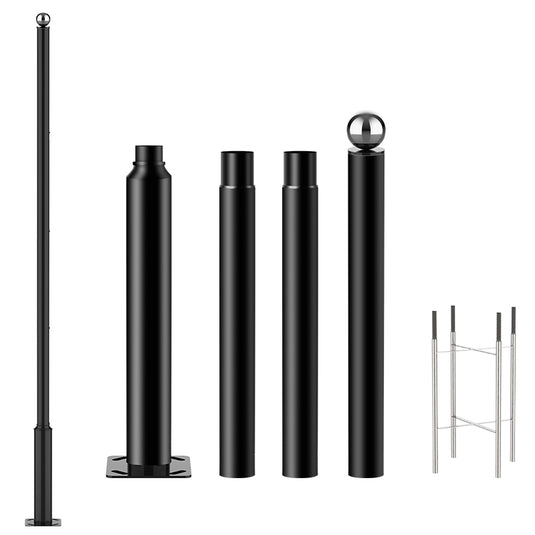

Pole Pieces | 4 pcs | 5pcs |
5 pc |
Material | Iron-zinc-plated | Iron-zinc-plated | Iron-zinc-plated |
Thickness | 1.5mm | 1.5mm | 1.5mm |
Hanging load | Max 22lb | Max 26 / 32lb ( ground cage installation) |
Attention
- Please do not install in areas with weak wind, obstructed by wind-blocking objects, high wind zones, coastal areas, mountain tops, etc.

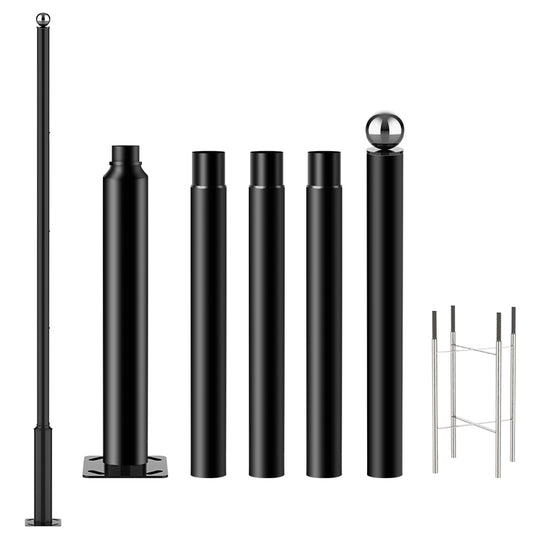

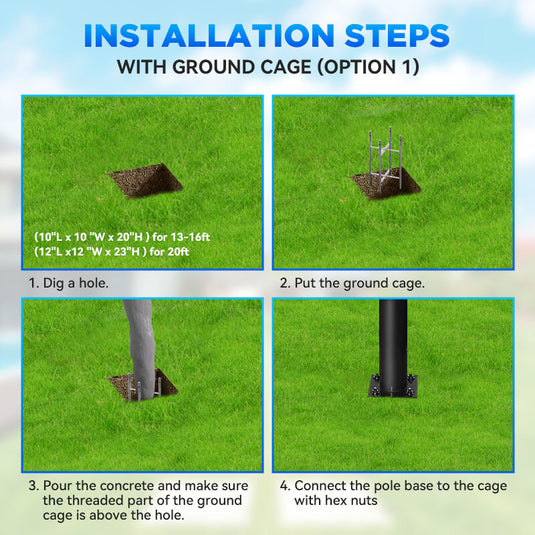

- If the luminaire's total weight exceeds 26 lbs, please use ground cage installation.
- Do not exceed the interface limit, and ensure the evacuation of unrelated personnel and the safety of installation personnel during the installation process.
- When installing or repairing the luminaire, please place the pole upside down and avoid ladder climbing on the pole.
Frequently Asked Questions:
- Minor pole deformation does not affect installation and use.
- If the interface is a small oval, rotating the orientation will allow for proper fitting.

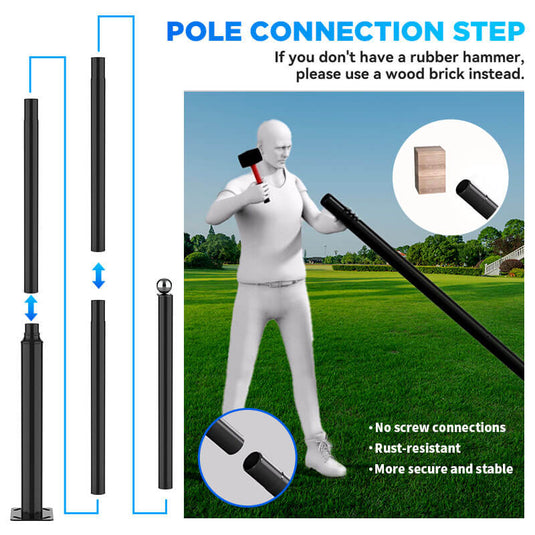

- If there is slight looseness in the interface, you can wrap it with packaging tape to secure the connection.
- It is normal for the pole to have a slight tilt of less than 3 degrees.
